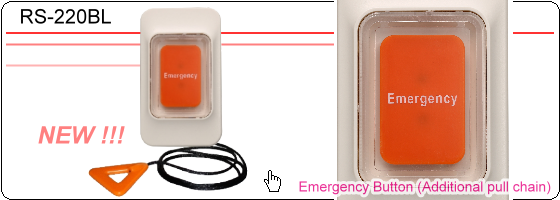

Emergency Button (Additional pull chain)




HOT NEW!!

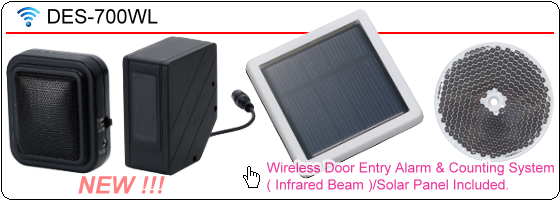

Wireless Door Entry Alarm & Counting System
(Infrared Beam0/Solar Panel Included.


HOT NEW!!
Full Range Input Voltage

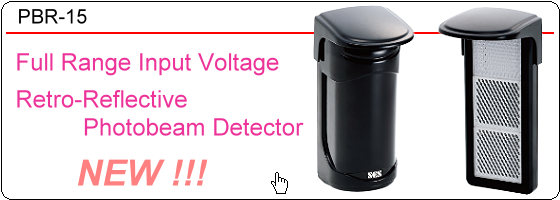

Retro-Reflective Photobeam Detector


NEW!!
Multi Frequency / Long Range Beam Tower


Retro-Reflective photocell
Through Beam
(Twin beams)

Polarized/Retro-Reflective photocell
Quad Beams -
Quad Photobeam Detector
Multi-Frequency
(4 Channel Selectable)
Twin Photobeam
Detector
Twin Photobeam
Detector (with laser
beam alignment function)


Twin Photobeam
Detector
Twin Photobeam Detector
Barrier (Curtain) Sensor
Barrier (Curtain) Sensor
- Swivel Housing


Photoelectric Beam
Sensor (Relay output)
Through Beam
Photoelectric
Beam Sensor
Through Beam Photoelectric Beam Sensor
Door Entry Alarm System


Retro-Reflective
Photoelectric beam
sensor
Retro-Reflective Photoelectric beam
sensor
Through Beam
Photoelectric Beam Sensor
Mini M18 Photoelectric
Beam Sensor


Mini M18
Photoelectric
Beam Sensor
Mini M18 Photoelectric Beam Sensor
M18 Photoelectric Beam Sensor
M18 Photoelectric Beam Sensor


M18 Photoelectric
Beam Sensor
PIR-3800
Motion Detector
Dual-Technology
MW / PIR


Indoor use

¡@

Surface Mount Photoelectric Beam Sensor
Flush mount--Retro Reflective
Flush Mount
Photoelectric Beam
Sensor
RS-GS020S


Roller Up Magnetic Shutter Sensor-Contacts
¡@

Roller Up Magnetic Shutter Sensor
(Contacts)
PTE-300
PTE-500
No Touch Exit Plate
PTE-300SQ
PTE-500SQ
No Touch Exit Plate
PTE-100
Press to Exit Plate


PTE-100SQ
Press to Exit Plate
PTE-150
Press to Exit Plate
PTE-180
Press to Exit Plate
PTE-250
Press to Exit Plate


PTE-280
Press to Exit Plate
PTE-72
Press to Exit Plate
PTE-28
Press to Exit Plate


Traffic Lights
¡@

TL-5100
Traffic Lights
TL-5000
Traffic Lights


Accessories
¡@

Shock Sensor
Magnetic switch
RS-06
CLEAR RFID Tag


Outdoor use
Model number Description Features
(HOT NEW !!)

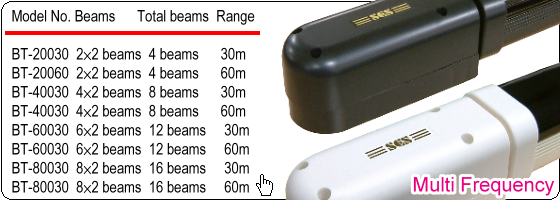

BT Series		 Multi Frequency / Long Range Beam Tower Long sensing range (30/60 meters outdoors)
Heater available (optional)
Aluminum housing/PC Resin anti-UV cover ABS side caps
AGC circuits; Anti high-low temperature, fog, rains
2 or 4 or 6 or 8 beams separate photoelectric beam sensors, programmable trigger on simultaneous breaking of any single, or 2 adjacent beams/or 2 adjacent beams broken only--selectable by JP2 on Rx's side cap.
Multi frequency (4 channels selectable)
Terminal block wiring connection
Alarm trigger: Break one or two adjacent beams
N.C./N.O./COM relay output
Mounting hardware included.
No synchronizing wires required.
Built in beam alignment led indicator.
Built in beam alignment buzzer (beep sound).
Built in tamper switches (left/right side caps of both Tx & Rx)



(NEW)PB-1500 (Retro-Reflective)
"LONG RANGE"
Retro-Reflective Photocell

 LONG RANGE PHOTOCELL
Retro-reflective type
Infrared led element
IP-66 water proof/cable gland
PC upper casing, anti fog/dew/rains
Round shape reflector-Dia.: 82.1mm
Input volt.: AC/DC 12~250V
Twin colors led indicator for beam alignment
Tamper switches included



(COMMING SOON !!)
PB-3000 (Through Beam-Twin Beams) 		"LONG RANGE" Through Beam
(Twin Beams)

LONG RANGE PHOTOCELL
Through beam (Twin beams) type
Infrared led element
IP-66 water proof/cable gland
PC upper casing, anti fog/dew/rains
Input volt.: AC/DC 12~250V
Twin colors led indicator for beam alignment
Tamper switches included



What is "Polarized" Retro-Reflective Sensor ?
(NEW) PBP-1000 Polarized/Retro-Reflective photocell

 Red infrared led element
IP-66 water proof
IP-66 water proof cable gland
PMMA upper casing, anti fog/dew/rains
Round shape reflector-Dia.: 82.1mm
Input volt.: AC/DC 12~250V
Twin colors Led indicator for beam alignment
Tamper switches included



(NEW) PBP-1000TF Polarized/Twin Finish Housing

Red infrared led element
Sensing range adjustable (optional)
IP-66 water proof
IP-66 water proof cable gland
PMMA upper casing, anti fog/dew/rains
Round shape reflector-Dia.: 82.1mm
Input volt.: AC/DC 12~250V
Twin colors Led indicator for beam alignment
Tamper switches included
¡@



¡@¡@¡@¡@¡@¡@ Size: 105(L)¡Ñ145(W)¡Ñ27(D)
¡@

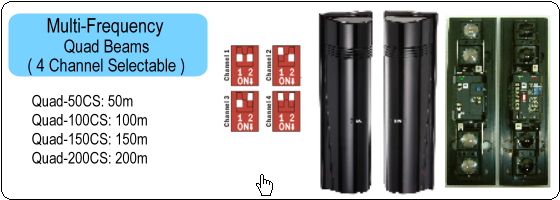

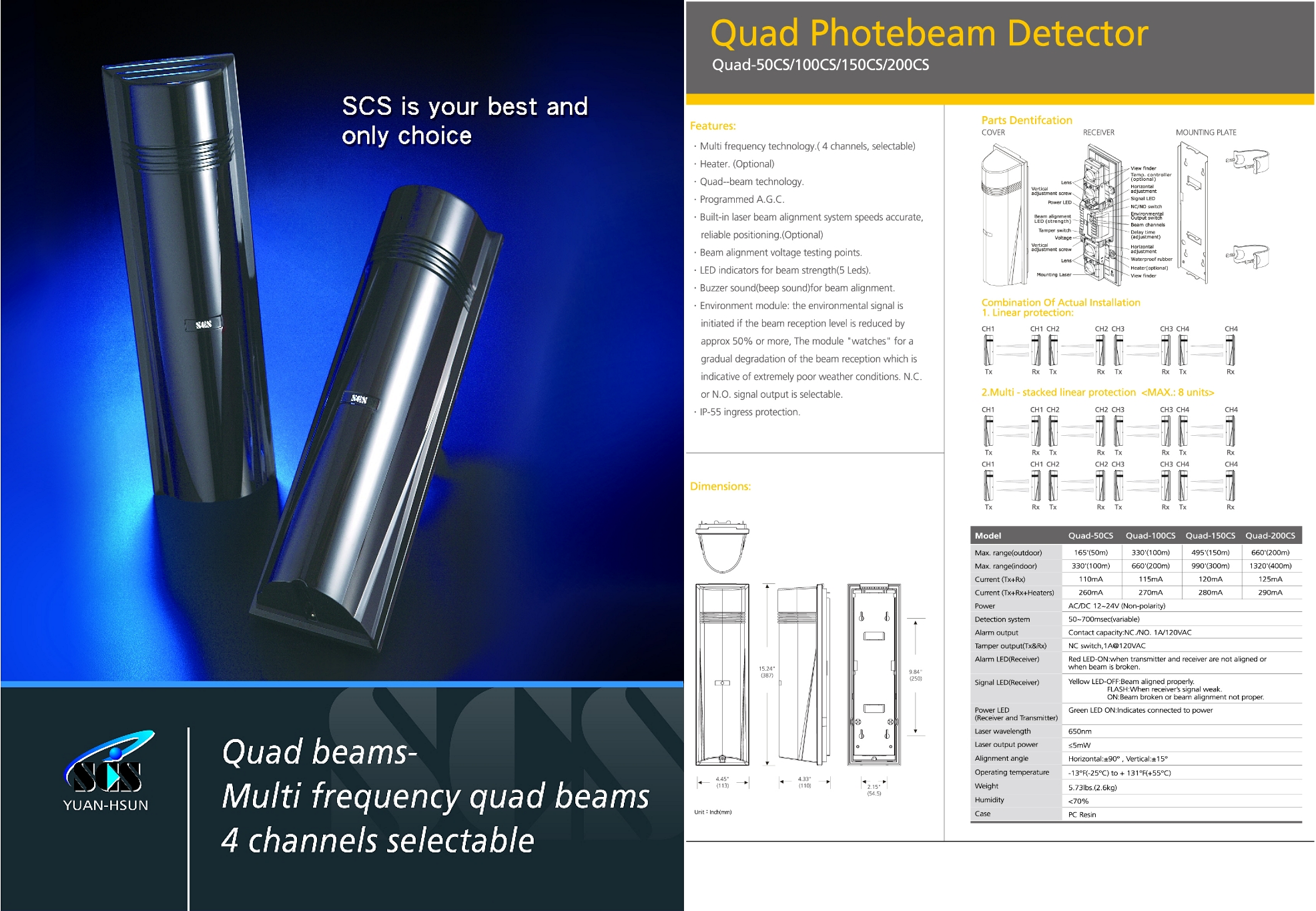

Quad-50CS/100CS/150CS
/200CS		 Quad Beams - Quad Photobeam Detector

¡¯Multi frequency/4 channels
¡¯Laser beam alignment function (optional) 		Laser beam alignment function (optional)
Buzzer sound (beep sound) for beam alignment
Led indicators for beam strength. ( 5 Leds)
Environment module: the environmental signal is
initiated if the beam reception level is reduced by
approx 50% or more, The module "watches" for a
gradual degradation of the beam reception which is
indicative of extremely poor weather conditions. N.C.
or N.O. signal output is selectable
Beam alignment volt. testing points
Quad beams
Heater (optional)
Programmed A.G.C.
Input Volt.:AC/DC 12-24V
IP-55 ingress protection
Sensing range
(outdoors):50m/100m/150m/200m
Size: 387(H)¡Ñ113(W)¡Ñ110(D) m/m



BS-200RC/BS-400RC
BS-600RC/BS-800RC		 Barrier (Curtain) Sensor

¡@¡@¡@¡@

Aluminum housing; PC cover as UV lights filter; ABS side caps
Slim/stylish aluminum housing, anti high/low temp./fog/rains.
Built in Led indicator/piezo buzzer for beam alignment
Tx power adjustment: Normal/Strong
Response time adjustable (50/100/150/200 msec adjustable)
Built in flexible flat cable as the bridge between beams and beams instead of hard PCB.
Built in optical lens. (Longer sensing range)
Smart infrared receiver module, free from any disturbance by external remote controllers.
Anti-tamper circuit triggers alarm if power is cut or end cap is removed.
Alarm: Break one or two adjacent beams.
L-brackets and mounting hardware included.
IP-65 water/dust proof.



BS-200SH/BS-400SH
BS-600SH/BS-800SH		 Barrier (Curtain) Sensor
- Swivel Housing		 Swivel Housing
Aluminum housing/PC Resin anti-UV cover/ABS side cap
Anti-tamper circuit triggers alarm if power is cut or end cap is removed
Slim aluminum housing, anti high-low temperature/fog/rains¡F 2 or 4/6/8 separate photoelectric beam sensors
Programmable trigger on simultaneous breaking of any single/2 adjacent beams or 2 adjacent beams broken only - selected by JP2 on Rx's side cap
Terminal block connection
Alarm: Break one or two adjacent beams
Tx power adjustment: By VR1 (ON Tx's side cap)
Sensing range: 12 meters (39 ft) - outdoor max¡F 24 meters (78 ft) - indoor max
N.O./N.C./Common relay output
Mounting hardware included
No synchronizing wires required
LED indicator alignment
Tamper switch

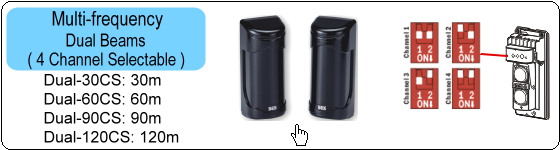

DUAL-30CS/60CS/90CS/120CS Multi-Frequency
(4 Channel electable)

Twin Photobeam Detector
(with laser beam alignment function)

 Programmed A.G.C.
N.C/N.O. Alarm output.
IP-55 ingress protection
Non-polarized power inputs.
N.C. Tamper circuit included.
Input voltage: AC/DC 12-24V
Laser beam alignment function
Multi--frequency technology(4 channels, selectable)
Weatherproof,sunlight-filtering case for indoor and outdoor use.
Quick,easy installation with built-in laser beam alignment system.
Automatic input power filtering with special noise rejection circuity.
Anti-frost system so that beam functions even in extreme conditions.
Twin beams provide reliable perimeter security minimizing false alarms from falling leaves,birds,etc.
Lensed optics reinforce beam strength and provide excellent immunity to false alarms due to rain,snow,mist,etc.



PB-30HD/60HD/80HD/120HD Twin Photobeam Detector
(with laser beam alignment function)

 Reliable Perimeter security and protection
Laser beam alignment function
Weather proof:Anti-rain, snow, dew, mist, frost--etc
IP-55 water proof
Automatic input power filtering
Sensing range: 30/60/80/120 meters
Detection method: Through beam (twin beams)



MPB-15HD/25HD Twin Photobeam Detector Reliable Perimeter security and protection
Weather proof:Anti-rain, snow, dew, mist, frost--etc
CE approved
IP-55 water proof
Easy, quick installation
Sensing range: 15 / 25 meters
Detection method: Through beam (twin beams)



MPB-10HD(W) Twin Photobeam Detector Reliable Perimeter security and protection
Weather proof:Anti-rain, snow, dew, mist, frost--etc
CE approved
IP-55 water proof
Easy, quick installation
Sensing range: 10 meters
Detection method: Through beam (twin beams)

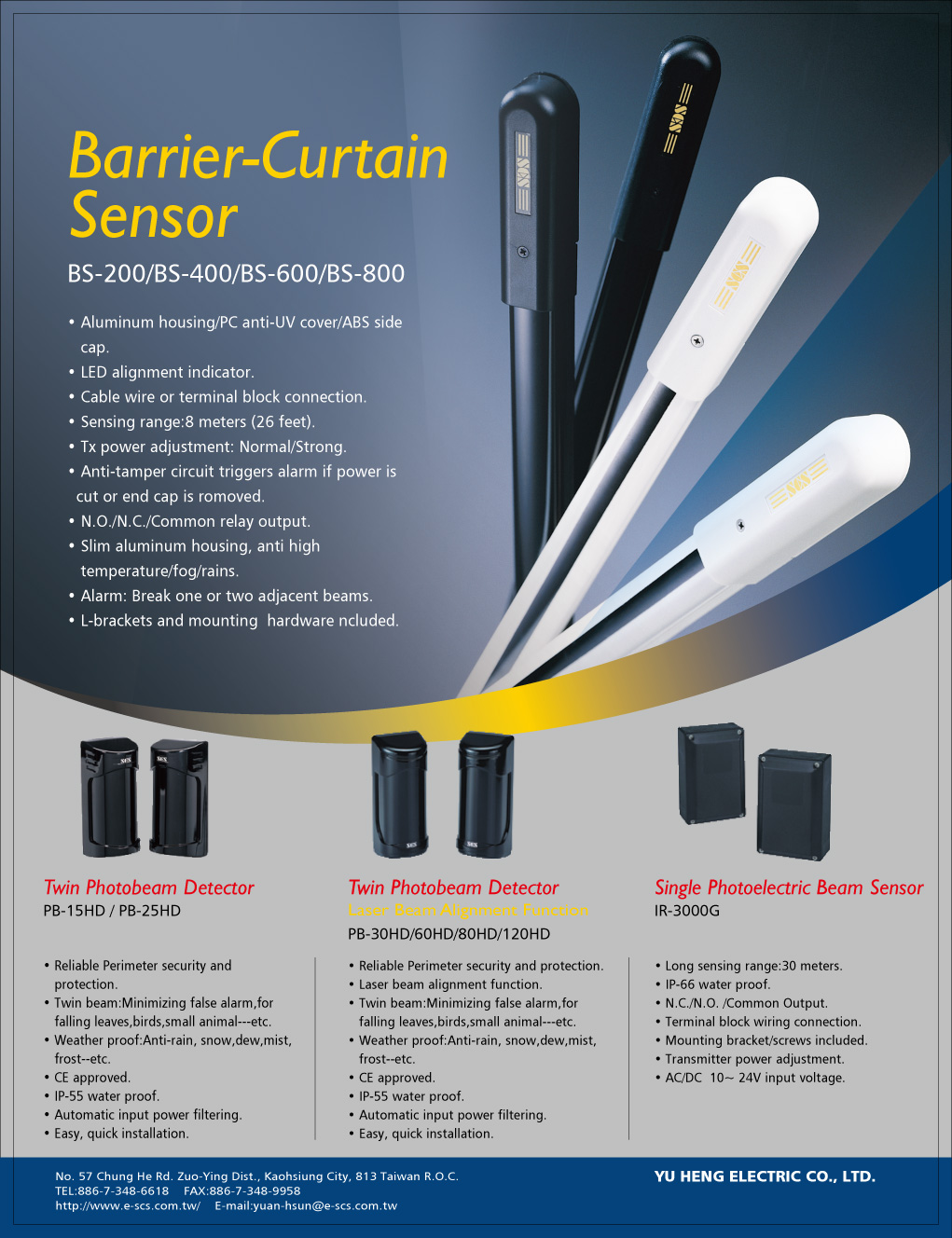

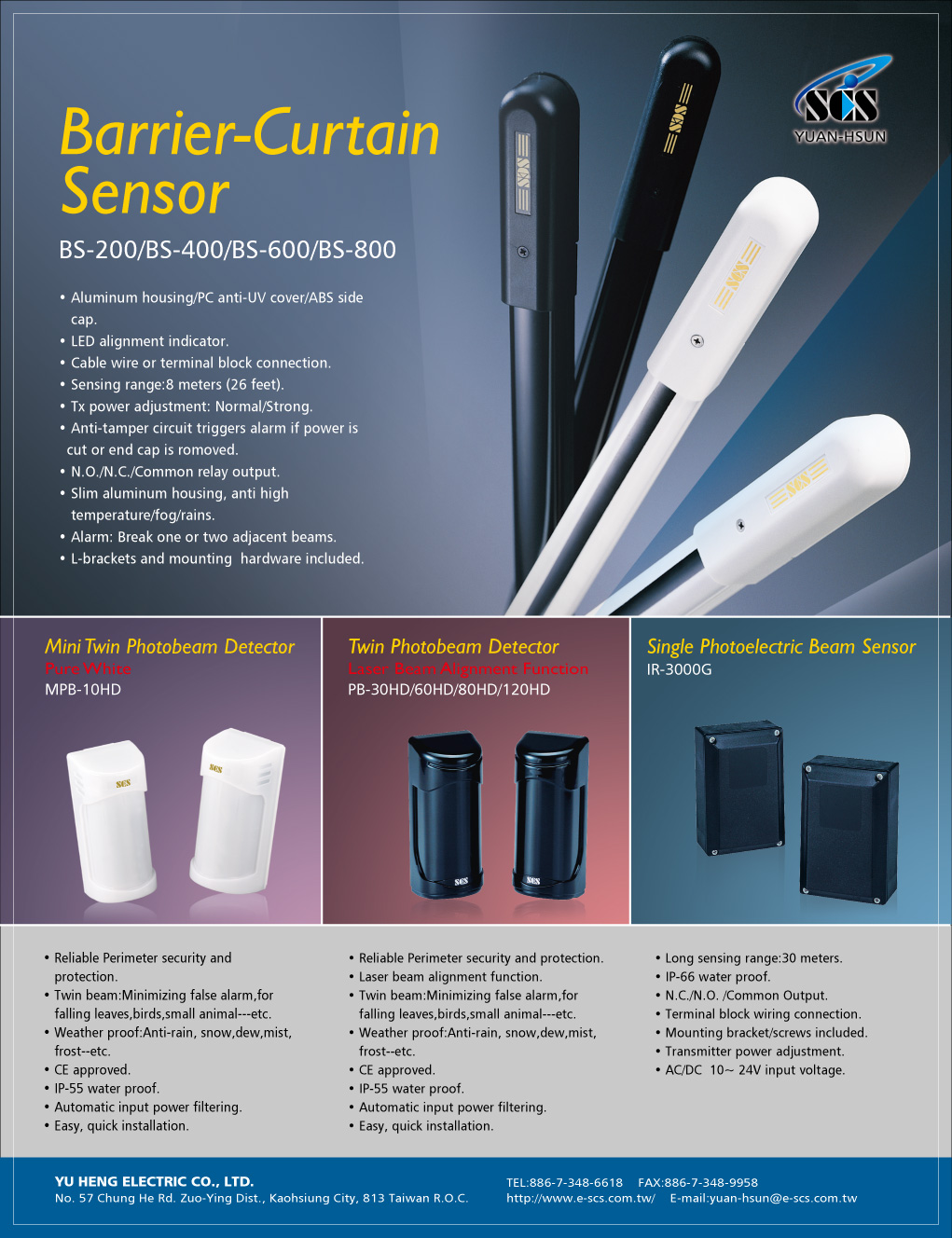

BS-200/BS-400
BS-600/BS-800		 Barrier (Curtain) Sensor Aluminum housing/PC anti-UV cover/ABS side cap
LED indicator for beam alignment
Cable wire or terminal block wiring connection
L-brackets and mounting hardware included
Sensing range:8 meters
Detection method: Through beam (2/4/6/8 beams)



IR-3000G   Photoelectric Beam Sensor (Relay output) IP-66 water proof
N.C./N.O./Common relay Output
Terminal block wiring connection
Mounting bracket/screws included
Sensing range: 30 meters
Detection method: Through beam (single beam)



IR-2000TS Through Beam Photoelectric Beam Sensor IP-66 water proof
N.C./N.O./Common relay Output
Terminal block wiring connection
Mounting bracket/screws included
Sensing range: 20 meters
Detection method: Through beam (single beam)
Tamper switches included(both Tx & Rx)



IR-1000TS(W) Through Beam Photoelectric Beam Sensor IP-66 water proof
N.C./N.O./Common relay Output
Terminal block wiring connection
Mounting bracket/screws included
Sensing range: 10 meters
Detection method: Through beam (single beam)
Tamper switches included(both Tx & Rx)

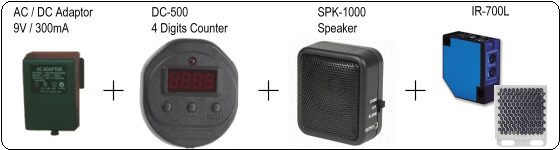

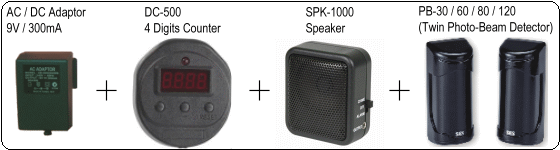

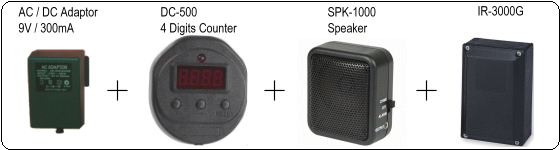

DES-700 & DC-500 Door Entry Alarm System Retro-Reflection type
Will make "ding-dong" sound or siren sound when the beam is interrupted
Speaker volume / time adjustable
When in siren mode, sounding time is adjustable from 3 to 30 seconds
Sensing range:0.1-6 meters(22 feet)

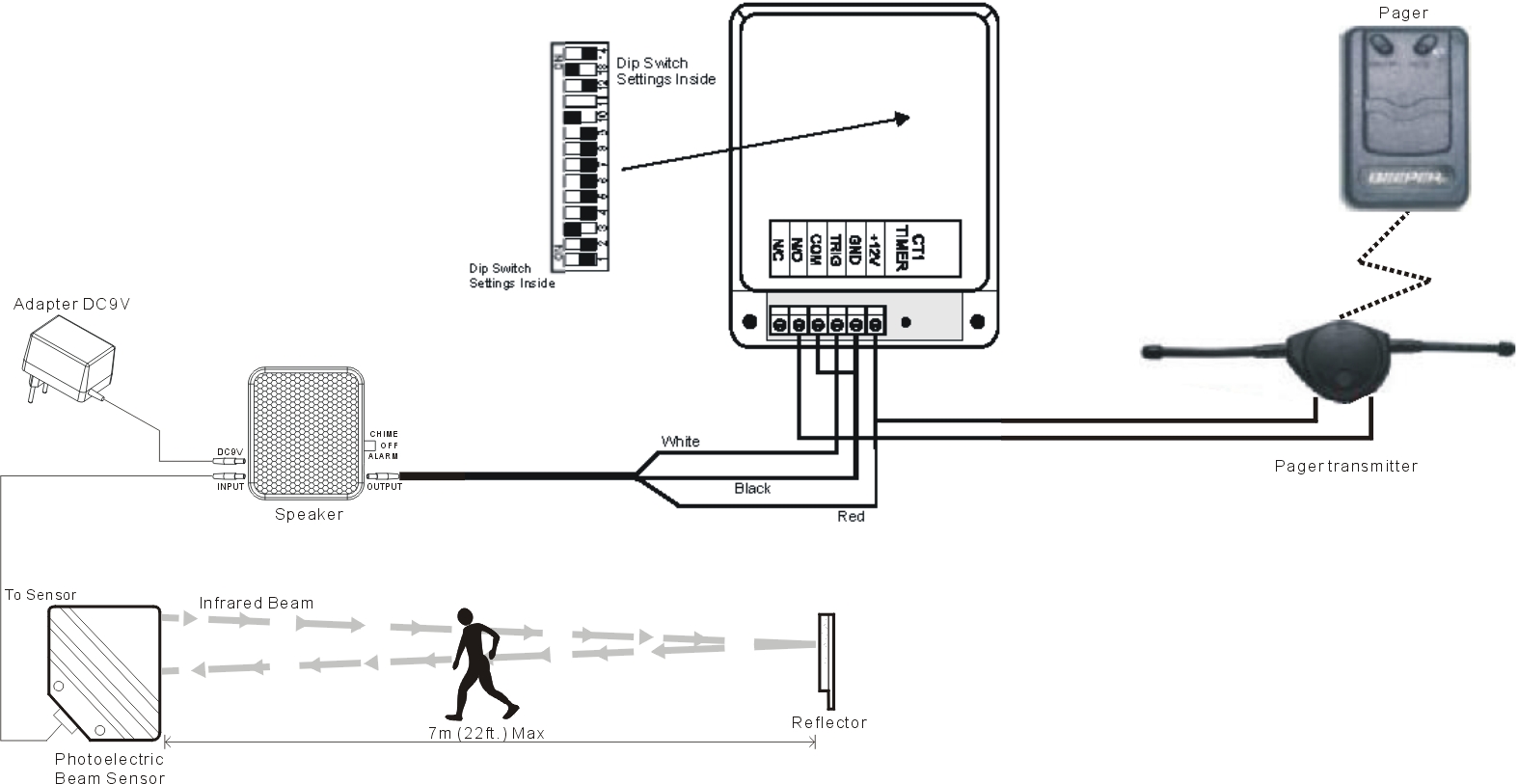

HOT DES-700 VS Pager (JPG FILE)


IR-1200L/IR-1200D   Retro-Reflective Photoelectric beam sensor(input volt.:"free power", Both AC / DC 12 - 250V)


Universal AC/DC input voltage
IP-66 water proof
N.C./N.O. relay Output
6 feet cable wires
Mounting bracket/screws included
Sensing range: 12 meters
Detection method: Retro-reflection (single beam)--through beam/diffused detection types available
¡@¡@¡@¡@




HD15¡GHood for reflectors(SR-50G or RR-80G)
SR-50G¡GSquare shape reflector(51.4 ¡Ñ 60.3 m/m)
RR-80G¡GSquare shape reflector (diameter¡G82.1 m/m)
MB-1000¡GWarp around mounting bracket


IR-1000Ex   Retro-Reflective Photoelectric beam sensor(input volt.: AC/DC 12-250V (Full Range-Universal))


Sensing range adjustable potentiometer available
Response time adjustable potentiometer abailable
PC casing, anti fog / dew / rains
IP-66 Water Proof
Square / Round Shape reflector selectable
Wrap around mounting bracket
Input Volt.: Full range (AC / DC 12~250V)
2 Led indicators for power and beam alignment
Hood for round / square shape reflector(Optional)
External water proof housing (optional)
¡@¡@¡@¡@


¡@
HD15¡GHood for reflectors(SR-50G or RR-80G)
SR-50G¡GSquare shape reflector(51.4 ¡Ñ 60.3 m/m)
RR-80G¡GSquare shape reflector (diameter¡G82.1 m/m)
MB-1000¡GWarp around mounting bracket


IR-3000Ex   Through Beam Photoelectric beam sensor(input volt.: AC/DC 12-250V (Full Range-Universal))
 Sensing range adjustable potentiometer available
Response time adjustable potentiometer abailable
PC casing, anti fog / dew / rains
IP-66 Water Proof
Wrap around mounting bracket
Input Volt.: Full range (AC / DC 12~250V)
2 Led indicators for power and beam alignment
External water proof housing (optional)
¡@¡@¡@¡@

(MB-1000)
¡@
MB-1000¡GWarp around mounting bracket


IR-300M18(N.C.)
IR-300M18(N.O.)		 Mini M18 Photoelectric Beam Sensor
NPN / PNP Transistor output(input volt.:DC 10 - 30V) 		Mini size: 30mm(L)¡Ñ18mm(D)
Twice Output: Both NPN/PNP
Water proof: IP-67
Sensing range: 3 meters
Detection method: retro-reflection(single beam)



IR-3000M18(N.C.)
IR-3000M18(N.O.)		 Mini M18 Photoelectric Beam Sensor
NPN / PNP Transistor output(input volt.:DC 10 - 30V) 		Mini size: 30mm(L)¡Ñ18mm(D)
Twice Output: Both NPN/PNP
Water proof: IP-67
Sensing range: 30 meters
Detection method: Through beam (single beam)



IR-15M18(N.C.)
IR-15M18(N.O.)		 Mini M18 Photoelectric Beam Sensor
NPN / PNP Transistor output(input volt.:DC 10 - 30V) 		Mini size: 30mm(L)¡Ñ18mm(D)
Twice Output: Both NPN/PNP
Water proof: IP-67
Sensing range:15 cm
Detection method: Diffused detection (single beam)



DR-300(N.C.)
DR-300(N.O.)		 M18 Photoelectric Beam Sensor
NPN / PNP Transistor output(input volt.:DC 10 - 30V) 		Twice Output: Both NPN/PNP
Water proof: IP-67
Sensing range: 3 meters
Detection method: Retro-reflection (single beam



DR-2000(N.C.)
DR-2000(N.O.)		 M18 Photoelectric Beam Sensor
NPN / PNP Transistor output(input volt.:DC 10 - 30V) 		Twice Output: Both NPN/PNP
Water proof: IP-67
Sensing range: 20 meters
Detection method: Through beam (single beam)



DR-40(N.C.)
DR-40(N.O.)		 M18 Photoelectric Beam Sensor
NPN / PNP Transistor output(input volt.:DC 10 - 30V) 		Twice Output: Both NPN/PNP
Water proof: IP-67
Sensing range: 40 cm
Detection method: Diffused reflection (single beam



PIR-3800 Motion Detector PIR-3800
Motion Detector 		Input Volt.:DC 9~16V
Consumption current: 9mA@12VDC
Lens Data"
¡@ No. of Fresnel elements: 27
¡@No. of Curtain elements: 9+5
¡@Max. Coverage: 12 x 12 m (40 x 40 ft.)
¡@Total of 46 curtains, equivalent to 214 ¡@beams
Alarm and Tamper Switch
Alarm led indicators
Event counter: Selectable, 1 or 2 ¡@motion events
Operating temp.: -20¢J ~ 60¢J
RFI Protection: Greater than 20 V/m ¡@(20MHz~1000MHz)
Size (HxWxD): 80x50x37 mm
Weight: Approximately 77 g



MW-2200 Dual-Technology
MW / PIR		 Direct conversion from analogue to digital
Digital software(TMDT)
No dead zone standard lens
Digital microwave detection
Reflow design
Digital auto pulse signal processing
Field test mode
Digital temperature compensation
Independent LED Indication for MW, PIR and Alarm




Indoor use
Model number Description Features
IR-10H Surface Mount Photoelectric Beam Sensor Applications: entrances and exits, corridors, staircases and as an annunciation device
LED alignment indicator-visibly confirms proper alignment
Filter which effectively eliminates interference from visible light rays
Sensing range: 10 meters (Indoor use only)
Detection method: Through beam (twin beams)



IR-700FR Flush mount--Retro Reflective Anti-fog and anti-dew design
Waterproof construction for indoor use
Special filter compensated circuit, protect from the outgoing light
Case is adopted with the PC plastic, all in one design
Option(1)


Option(2)



IR-1000HR Flush Mount Photoelectric Beam Sensor Anti-fog and anti-dew design
Waterproof construction for indoor use
Special filter compensated circuit, protect from the outgoing light
Case is adopted with the PC plastic, all in one design
Sensing range: 10 meters (Indoor use only)
Detection method: Through beam (twin beams



RS-GS020S

Resistance: 7£[
Capacity: 70mA
Impendence: 1M £[ min.
Contact resistancd: 1M
Surge Protection: 2KV
Output Timing: 3 second min.
Input Volt.: 18VDC
Finish: Light gray or Brown
Working Temp.: -20¢J¡ã80¢J
Size: 4( £p )x80mm
Sensing Range: Strong/Normal (see following)¡XAdjustable


SS-007 Shock Sensor 24ct gold plated internal contact
Sensitivity adjustable from High to Low
Suitable for most security system
CE Approved
Dimension: 60(L) x 22(W) x 22(D) mm



Overhead Door Contacts
Model number Description Features
RS-06 2" (50 mm) Operating Gap
Nd-Fe-B N35 magnet, high performance
than Alnico magnet
Aluminum-Shape bracket-adjustable
Armored cable wire length: 24" (61 cm)
UL standard grade AWG#22 wiring



Roller Up Magnetic Shutter Sensor (Contacts)
Model number Description Features
SS-12

Contact rating: 0.2 A/30VDC
Sensing range: 80 mm
Siliding/Swivel housing & brackets:Upper bracket: 270¢X, bottom housing: 360¢X
Contact Capacity: 5W
Length of lead wire:20 cm
Material: ABS
Color: Grey (White, black, brown colors available)

Roller Up Magnetic Shutter Sensor
(Contacts)



PTE-300 & PTE-500 No Touch Exit Plate No touch / Touch free Exit Sensor (Diffused Detection)
Optical / Infrared Technology
IP-55 Ingress Protection / SUS 304 Stainless steel Plate
User friendly (Healthy protection):Free from contagious diseases spread
Detection range: 0.1 ~ 10 cm
Application: Gate/Door/Exit/Automation control
High capacity of relay dry contact (3A/AC120V,DC30V)
Normally open/Normally close/Common relay output
Twin led indicators for sensor standby or approached:(1) Sensor Standby: Blue led on (2) Visitors whom approached to the sensor in 10 cm:Red led on



PTE-300SQ & PTE-500SQ No Touch Exit Plate No touch / Touch free Exit Sensor (Diffused Detection)
Optical / Infrared Technology
IP-55 Ingress Protection / SUS 304 Stainless steel Plate
User friendly (Healthy protection):Free from contagious diseases spread
Detection range: 0.1 ~ 10 cm
Application: Gate/Door/Exit/Automation control
High capacity of relay dry contact (3A/AC120V,DC30V)
Normally open/Normally close/Common relay output
Twin led indicators for sensor standby or approached:(1) Sensor Standby: Blue led on (2) Visitors whom approached to the sensor in 10 cm:Red led on



PTE-150¡B250 Press to Exit Plate Mechanical life: 1,000,000 cycles min.
LED life: 50,000 cycles min.
1 N.O. pole / 1 N.C. pole momentary action.
Durable stainless steel plate
Stainless steel push button panel sealing protection IP40.
Dimensions: 115¡Ñ70¡Ñ26(mm)
Weight: 150g




PTE-180¡B280 Press to Exit Plate Mechanical life: 1,000,000 cycles min.
LED life: 50,000 cycles min.
1 N.O. pole / 1 N.C. pole momentary action.
Durable stainless steel plate
Stainless steel push button panel sealing protection IP40.
Dimensions: 38.5¡Ñ115¡Ñ36(mm)
Weight: 42.14g
¡@¡@

¡@¡@


PTE-100¡B72 Press to Exit Plate Mechanical life: 1,000,000 cycles min
Durable stainless steel plate
Dimensions: 115¡Ñ70¡Ñ26(mm)
Weight: 150g



PTE-100SQ Press to Exit Plate Mechanical life: 1,000,000 cycles min
Durable stainless steel plate
Dimensions: 86¡Ñ86¡Ñ12(mm)
Weight: 150g



PTE-28 Press to Exit Switches Mechanical life: 1,000,000 cycles min
Durable stainless steel plate
Dimensions: 115¡Ñ70¡Ñ26(mm)
Weight: 150g
Contact rating: 2A@48 VDC Max.(resistive load)
Single pole NO momentary action


MC-05 Magnetic switch Mount¡GSurface/Screw terminals
Contact: N.C. or N.O. types available
¡@(MC-05-NC:NC type / MC-05-NO: NO type)
Wide Gap¡G25mm
Contact Rating¡G0.5A@100VDC
Color¡GWhite / Brown color available
Mount¡GSurface/Screw terminals
Open-Short testing points
Size¡G53.5(L)¡Ñ15.5(W)¡Ñ16(D) mm




MC-12 Magnetic switch Mount¡GSurface/Screw terminals
Contact: N.C. or N.O. types available
¡@MC-12-NC:NC type
¡@MC-12-NO: NO type)
Wide Gap¡G25mm
Contact Rating¡G¢°A@100VDC
Color¡GWhite
Mount¡GSurface/Screw terminals
Open-Short testing points
Size¡G53(L)¡Ñ15.5(W)¡Ñ16(D) mm




Traffic Lights
Model number Description Features
TL-5100

Input Voltage: DC12V
Output Power: 18W
Current consumption:
¡DWhen red led indicator on: 150~200mA
¡DWhen green led indicator on: 200~300mA
Enviornment Temp.: -20¢J~60¢J
Environment Humidity: 40~90%
Material of housing: Metal
Size: 356(W)¡Ñ242(H)¡Ñ27(D)mm




TL-5000

Input Voltage: AC 110V / 220V
Total Current Drain: 30mA
Surge Protection
Humikity: 90¢H
Case: PC Resin
Water Proof: IP-55
Dimensions:W(61cm)¡ÑH(40cm)¡ÑD(10cm)



EG-06 CLEAR RFID Tag  Diameter: 21 mm
Format: EM-4001/40 bit code
Thickness: 1mm


A. Twin Photobeam Detector & Siren & Counting System
HOT DC-500+SPK-1000 (1) (PDF FILE) Door Entry Alarm and Counting System


B. Gateopener Sensor & Siren & Counting System
HOT DC-500+SPK-1000 (2) (PDF FILE) Door Entry Alarm and Counting System


C. Free Power Sensor & Siren & Counting System
HOT DC-500+SPK-1000 (3) (PDF FILE) Door Entry Alarm and Counting System


HOT DC-500 (JPG FILE) Plug in type 4 digits counter

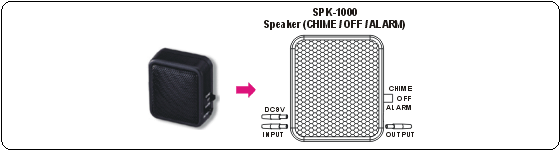

HOT SPK-1000 (JPG FILE) Plug in type speaker (Chime / Off / Alarm)
