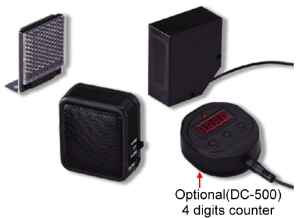

DES-700 & DC-500
Door Entry System Alarm
Features
Retro-Reflection type.
Sensing range:0-6 meters(22 feet).
Will make "ding-dong" sound or siren sound when the beam is interrupted.
Speaker volume can be adjusted or turned.
When in siren mode, sounding time is adjustable from 3 to 30 seconds.

Specifications
Model

DES-700

Sensing type

Retro-Reflection type Door Entry Alarm System

Sensing range
0.5~6 meters (18 feet)
Input Voltage

DC 9-15V

Consumption current

75mA

Standby Current

25 mA Max.

Light Source
IR LED
Ambient Temperature
-20J ~ 50J(-4XF ~ 122XF)
Response time of Speaker
Chime: 1 sec. Alarm: 30 sec.
Volume of Speaker

0-Max. (Adjustable)

Alarm time
30 sec Max. (Adjustable)
External Chime Output
NPN output
Speaker output
Chime/Off/Alarm (Selected by Slide Switch)
Mounting bracker and screw
Included
Extra Speaker
Optional
