	Alarm Control System
	Access Control System
	Photoelectric Beam Sensor
	Electro Magnetic Locks
	Models&Descriptions

Outdoor use
Model number	Description	Features

HOT NEW !!

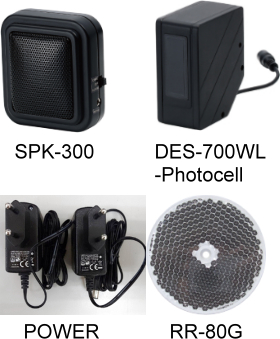

DES-700WL-B

Wireless Door
Entry Alarm
& Counting System
(Infrared Beam)

Wireless Retro-Reflective Photoelectric Beam Sensor

Range: 3.14 to 22 feet (0.5~ 7 meters)

Switching mode power adaptor for sensor & speaker

Wireless Photo Beams to Speaker

Volume of Speaker: Adjustable

Sounding Time: 3~30 seconds

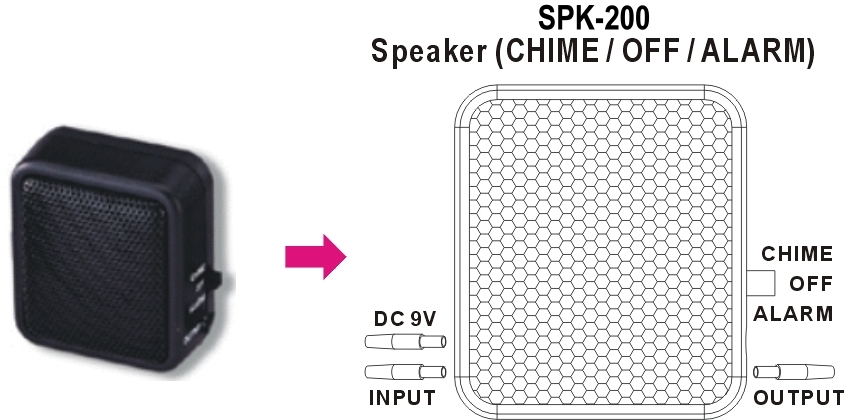

Door Chime/Alarm Speaker Included.

HOT NEW !!
PBR-15

Full Range Input Voltage
Retro-Reflective Photobeam Detector

Retro-Reflective photobeam detector

Full Range input voltage (AC/DC 12~250V)

Red infrared led element

Long sensing range: 15 meters

IP-55 water proof

Hood for sensor & reflector pack

Triple square shape reflector set

Pole mounting bracket included.

Power and beam alignment led indicators included.

NEW !!

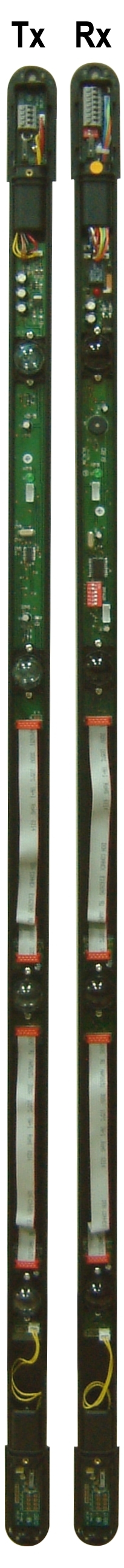

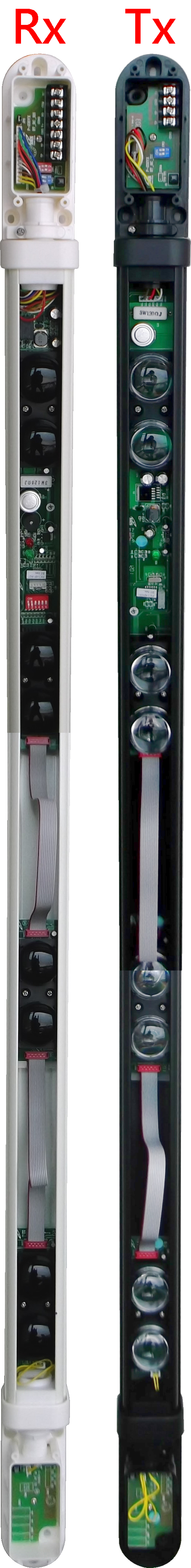

BT Series

Multi Frequency / Long Range Beam Tower

Long sensing range (30/60 meters outdoors)

Heater available (optional)

Aluminum housing/PC Resin anti-UV cover ABS side caps

AGC circuits; Anti high-low temperature, fog, rains

2 or 4 or 6 or 8 beams separate photoelectric beam sensors, programmable trigger on simultaneous breaking of any single, or 2 adjacent beams/or 2 adjacent beams broken only--selectable by JP2 on Rx's side cap.

Multi frequency (4 channels selectable)

Terminal block wiring connection

Alarm trigger: Break one or two adjacent beams

N.C./N.O./COM relay output

Mounting hardware included.

No synchronizing wires required.

Built in beam alignment led indicator.

Built in beam alignment buzzer (beep sound).

Built in tamper switches (left/right side caps of both Tx & Rx)

PB-1500 (Retro-Reflective)	"LONG RANGE" Retro-Reflective Photocell	LONG RANGE PHOTOCELL Retro-reflective type Infrared led element IP-66 water proof/cable gland PC upper casing, anti fog/dew/rains Round shape reflector-Dia.: 82.1mm Input volt.: AC/DC 12~250V Twin colors led indicator for beam alignment Tamper switches included

PB-3000 (Through Beam-Twin Beams)	"LONG RANGE" Twin Beams Gateopener	LONG RANGE PHOTOCELL Through beam (Twin beams) type Infrared led element IP-66 water proof/cable gland PC upper casing, anti fog/dew/rains Input volt.: AC/DC 12~250V Twin colors led indicator for beam alignment Tamper switches included

	What is "Polarized" Retro-Reflective Sensor ?
PBP-1000		Polarized/Retro-Reflective photocell	Red infrared led element Sensing range adjustable (optional) IP-66 water proof IP-66 water proof cable gland PMMA upper casing, anti fog/dew/rains Round shape reflector-Dia.: 82.1mm Input volt.: AC/DC 12~250V Twin colors Led indicator for beam alignment Tamper switches included

PBP-1000TF	Polarized/Twin Finish Housing	Red infrared led element Sensing range adjustable (optional) IP-66 water proof IP-66 water proof cable gland PMMA upper casing, anti fog/dew/rains Round shape reflector-Dia.: 82.1mm Input volt.: AC/DC 12~250V Twin colors Led indicator for beam alignment Tamper switches included

Quad-50CS/100CS/150CS /200CS	Quad Beams - Quad Photobeam Detector ＊Multi frequency/4 channels ＊Laser beam alignment function (optional)	Laser beam alignment function (optional) Buzzer sound (beep sound) for beam alignment Led indicators for beam strength. ( 5 Leds) Environment module: the environmental signal is initiated if the beam reception level is reduced by approx 50% or more, The module "watches" for a gradual degradation of the beam reception which is indicative of extremely poor weather conditions. N.C. or N.O. signal output is selectable Beam alignment volt. testing points Quad beams Heater (optional) Programmed A.G.C. Input Volt.:AC/DC 12-24V IP-55 ingress protection Sensing range (outdoors):50m/100m/150m/200m Size: 387(H)×113(W)×110(D) m/m

DUAL-30CS/60CS/90CS/120CS	Multi-Frequency (4 Channel electable) Twin Photobeam Detector (with laser beam alignment function)	Programmed A.G.C. N.C/N.O. Alarm output. IP-55 ingress protection Non-polarized power inputs. N.C. Tamper circuit included. Input voltage: AC/DC 12-24V Laser beam alignment function Multi--frequency technology(4 channels, selectable) Weatherproof,sunlight-filtering case for indoor and outdoor use. Quick,easy installation with built-in laser beam alignment system. Automatic input power filtering with special noise rejection circuity. Anti-frost system so that beam functions even in extreme conditions. Twin beams provide reliable perimeter security minimizing false alarms from falling leaves,birds,etc. Lensed optics reinforce beam strength and provide excellent immunity to false alarms due to rain,snow,mist,etc.

PB-30HD/60HD/80HD/120HD	Twin Photobeam Detector (with laser beam alignment function)	Reliable Perimeter security and protection Laser beam alignment function Weather proof:Anti-rain, snow, dew, mist, frost--etc IP-55 water proof Automatic input power filtering Sensing range: 30/60/80/120 meters Detection method: Through beam (twin beams)

MPB-15HD/25HD	Twin Photobeam Detector	Reliable Perimeter security and protection Weather proof:Anti-rain, snow, dew, mist, frost--etc CE approved IP-55 water proof Easy, quick installation Sensing range: 15 / 25 meters Detection method: Through beam (twin beams)

MPB-10HD-W	Twin Photobeam Detector	Reliable Perimeter security and protection Weather proof:Anti-rain, snow, dew, mist, frost--etc CE approved IP-55 water proof Easy, quick installation Sensing range: 10 meters Detection method: Through beam (twin beams)

BS-200RC/BS-400RC BS-600RC/BS-800RC	Barrier (Curtain) Sensor	Aluminum housing; PC cover as UV lights filter; ABS side caps Slim/stylish aluminum housing, anti high/low temp./fog/rains. Built in Led indicator/piezo buzzer for beam alignment Tx power adjustment: Normal/Strong Response time adjustable (50/100/150/200 msec adjustable) Built in flexible flat cable as the bridge between beams and beams instead of hard PCB. Built in optical lens. (Longer sensing range) Smart infrared receiver module, free from any disturbance by external remote controllers. Anti-tamper circuit triggers alarm if power is cut or end cap is removed. Alarm: Break one or two adjacent beams. L-brackets and mounting hardware included. IP-65 water/dust proof.

BS-200SH/BS-400SH BS-600SH/BS-800SH	Barrier (Curtain) Sensor - Swivel Housing	Swivel Housing Aluminum housing/PC Resin anti-UV cover/ABS side cap Anti-tamper circuit triggers alarm if power is cut or end cap is removed Slim aluminum housing, anti high-low temperature/fog/rains； 2 or 4/6/8 separate photoelectric beam sensors Programmable trigger on simultaneous breaking of any single/2 adjacent beams or 2 adjacent beams broken only - selected by JP2 on Rx's side cap Terminal block connection Alarm: Break one or two adjacent beams Tx power adjustment: By VR1 (ON Tx's side cap) Sensing range: 12 meters (39 ft) - outdoor max； 24 meters (78 ft) - indoor max N.O./N.C./Common relay output Mounting hardware included No synchronizing wires required LED indicator alignment Tamper switch

IR-3000G	Photoelectric Beam Sensor (Relay output)	IP-66 water proof N.C./N.O./Common relay Output Terminal block wiring connection Mounting bracket/screws included Sensing range: 30 meters Detection method: Through beam (single beam)

IR-2000TS	Through Beam Photoelectric Beam Sensor	IP-66 water proof N.C./N.O./Common relay Output Terminal block wiring connection Mounting bracket/screws included Sensing range: 20 meters Detection method: Through beam (single beam) Tamper switches included(both Tx & Rx)

IR-1000TS(W)	Through Beam Photoelectric Beam Sensor	IP-66 water proof N.C./N.O./Common relay Output Terminal block wiring connection Mounting bracket/screws included Sensing range: 10 meters Detection method: Through beam (single beam) Tamper switches included(both Tx & Rx)

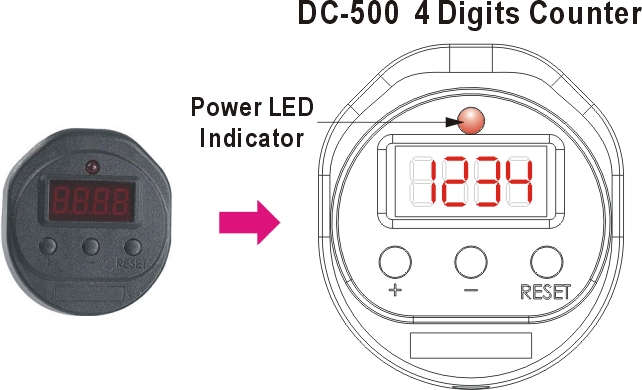

DES-700 & DC-500	Door Entry Alarm System	Retro-Reflection type Will make "ding-dong" sound or siren sound when the beam is interrupted Speaker volume / time adjustable When in siren mode, sounding time is adjustable from 3 to 30 seconds Sensing range:0.1-6 meters(22 feet)

DES-700 Vs. Pager(PDF FILE)

IR-1200L/IR-1200D	Retro-Reflective Photoelectric beam sensor(input volt.:"free power", Both AC / DC 12 - 250V)	Universal AC/DC input voltage IP-66 water proof N.C./N.O. relay Output 6 feet cable wires Mounting bracket/screws included Sensing range: 12 meters Detection method: Retro-reflection (single beam)--through beam/diffused detection types available

	HD15：Hood for reflectors(SR-50G or RR-80G) SR-50G：Square shape reflector(51.4 × 60.3 m/m) RR-80G：Square shape reflector (diameter：82.1 m/m) MB-1000：Warp around mounting bracket

IR-1000Ex	Retro-Reflective Photoelectric beam sensor(input volt.: AC/DC 12-250V (Full Range-Universal))	Sensing range adjustable potentiometer available Response time adjustable potentiometer abailable PC casing, anti fog / dew / rains IP-66 Water Proof Square / Round Shape reflector selectable Wrap around mounting bracket Input Volt.: Full range (AC / DC 12~250V) 2 Led indicators for power and beam alignment Hood for round / square shape reflector(Optional) External water proof housing (optional)

	HD15：Hood for reflectors(SR-50G or RR-80G) SR-50G：Square shape reflector(51.4 × 60.3 m/m) RR-80G：Square shape reflector (diameter：82.1 m/m) MB-1000：Warp around mounting bracket

IR-3000Ex	Through Beam Photoelectric beam sensor(input volt.: AC/DC 12-250V (Full Range-Universal))	Sensing range adjustable potentiometer available Response time adjustable potentiometer abailable PC casing, anti fog / dew / rains IP-66 Water Proof Wrap around mounting bracket Input Volt.: Full range (AC / DC 12~250V) 2 Led indicators for power and beam alignment External water proof housing (optional)
(MB-1000)
	MB-1000：Warp around mounting bracket

IR-300M18(N.C.) IR-300M18(N.O.)	Mini M18 Photoelectric Beam Sensor NPN / PNP Transistor output(input volt.:DC 10 - 30V)	Mini size: 30mm(L)×18mm(D) Twice Output: Both NPN/PNP Water proof: IP-67 Sensing range: 3 meters Detection method: retro-reflection(single beam)

IR-3000M18(N.C.) IR-3000M18(N.O.)	Mini M18 Photoelectric Beam Sensor NPN / PNP Transistor output(input volt.:DC 10 - 30V)	Mini size: 30mm(L)×18mm(D) Twice Output: Both NPN/PNP Water proof: IP-67 Sensing range: 30 meters Detection method: Through beam (single beam)

IR-15M18(N.C.) IR-15M18(N.O.)	Mini M18 Photoelectric Beam Sensor NPN / PNP Transistor output(input volt.:DC 10 - 30V)	Mini size: 30mm(L)×18mm(D) Twice Output: Both NPN/PNP Water proof: IP-67 Sensing range:15 cm Detection method: Diffused detection (single beam)

DR-300(N.C.) DR-300(N.O.)	M18 Photoelectric Beam Sensor NPN / PNP Transistor output(input volt.:DC 10 - 30V)	Twice Output: Both NPN/PNP Water proof: IP-67 Sensing range: 3 meters Detection method: Retro-reflection (single beam

DR-2000(N.C.) DR-2000(N.O.)	M18 Photoelectric Beam Sensor NPN / PNP Transistor output(input volt.:DC 10 - 30V)	Twice Output: Both NPN/PNP Water proof: IP-67 Sensing range: 20 meters Detection method: Through beam (single beam)

DR-40(N.C.) DR-40(N.O.)	M18 Photoelectric Beam Sensor NPN / PNP Transistor output(input volt.:DC 10 - 30V)	Twice Output: Both NPN/PNP Water proof: IP-67 Sensing range: 40 cm Detection method: Diffused reflection (single beam

Indoor use
Model number	Description	Features
IR-10H	Surface Mount Photoelectric Beam Sensor (Twin beams)	Applications: entrances and exits, corridors, staircases and as an annunciation device LED alignment indicator-visibly confirms proper alignment Filter which effectively eliminates interference from visible light rays Sensing range: 10 meters (Indoor use only) Detection method: Through beam (twin beams)

IR-700FR	Flush mount--Retro Reflective	Anti-fog and anti-dew design Waterproof construction for indoor use Special filter compensated circuit, protect from the outgoing light Case is adopted with the PC plastic, all in one design
Option(1) Option(2)

IR-1000HR	Flush Mount Photoelectric Beam Sensor	Anti-fog and anti-dew design Waterproof construction for indoor use Special filter compensated circuit, protect from the outgoing light Case is adopted with the PC plastic, all in one design Sensing range: 10 meters (Indoor use only) Detection method: Through beam (twin beams

SS-007	Shock Sensor	24ct gold plated internal contact Sensitivity adjustable from High to Low Suitable for most security system CE Approved Dimension: 60(L) x 22(W) x 22(D) mm

Overhead Door Contacts
Model number	Description	Features
RS-06	Overhead Door Contacts	2" (50 mm) Operating Gap L-shape Stainless steel bracket: adjustable Armored cable wire length: 24" (61 cm) UL standard grade AWG#22 wiring Color: Gray

Roller Up Magnetic Shutter Sensor (Contacts)
Model number	Description	Features
SS-12	Roller Up Magnetic Shutter Sensor (Contacts)	Contact rating: 0.2 A/30VDC Sensing range: 80 mm Sliding/Swivel housing & brackets:Upper bracket: 270°, bottom housing: 360° Contact Capacity: 5W Length of lead wire:20 cm Material: ABS Color: Grey (White, black, brown colors available)
