Models&Descriptions

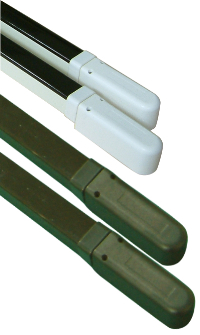

BS-200SH/BS-400SH/BS-600SH/BS-800SH
Barrier- Curtain Sensor - Swivel Housing
Features
Swivel Housing
Aluminum housing/PC Resin anti-UV cover/ABS side cap
Anti-tamper circuit triggers alarm if power is cut or end cap is removed
Slim aluminum housing, anti high-low temperature/fog/rains
2 or 4/6/8 separate photoelectric beam sensors°FProgrammable trigger on simultaneous breaking of any single/2 adjacent beams or 2 adjacent beams broken only - selected by JP2 on Rx's side cap
Terminal block connection
Alarm: Break one or two adjacent beams
Tx power adjustment: By VR1 (ON Tx's side cap)
Sensing range: 12 meters (39 ft) - outdoor max°F24 meters (78 ft) - indoor max
N.O./N.C./Common relay output
Mounting hardware included
No synchronizing wires required
LED indicator alignment
Tamper switch

Specifications
Model

BS-200SH

BS-400SH
BS-600SH
BS-800SH
Number of Beams
2
4
6
8
Dimensions(mm)

35°—30°—570

35°—30°—1050
35°—30°—1530
35°—30°—2010
Range

12 meters (39 feet) max.-outdoor / 24 meters (78 feet) max.-indoor

Operating Voltage
10 ~ 24 VDC
Detection method

Break one beam or two adjacent beams
(1) 1 beam: 2 seconds alarm
(2) 2 adjacent beams: immediately
***1 beam broken alarm trigger function can be removed;
See (JP2) which located at Rx's side cap;
(JP2) Jumper closed: 1 beam broken alarm (2 sec.) function existed.
(JP2) Jumper opened: 1 beam broken alarm (2 sec.) function removed.

Signal output Normal open / Normal close / Common relay output
Response Time (Rx) 50/100/150/200 ms (selectable - by SW1 slide switch-Rx)
Contact rating 3A/125VAC
Tx Power Adjustment (by VR1) (a) when turn clockwise: become stronger
(b) when turn counter-clockwise: become normal
Power Led indicator Green Led (On both Tx/Rx unit) °@On : powered°@Off : no power
Led indicator
for Beam alignment
Red Led (On Rx unit)
On : when beam is broken ; Off : when beam is aligned properly
Buzzer Alarm
(for beam alignment)
Black jumper1(JP1)(ON Rx)unit
(a)On : when sensor is connected with DC power & before beam
alignment is done.
(b)Off : when beam aligned properly ; automatically.
***This function can be cancelled by JP1 removed***
Tamper Switch 4 pcs/each set ; 2 on both sides of Tx/2 on both side of Rx
Operating temp -25ĘJ~55ĘJ (-13ĘK~131ĘK)
Dimensions

W: 35 mm / H: 30 mm / L: see following

Humidity

90%
