IR-3000L¡@(N.C.)
IR-3000D¡@(N.O.)
Free

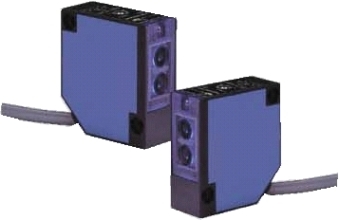

Power Photoelectric Beam Sensor
| Features |
 |
Universal
AC/DC input voltage. |
|
IP-66
water proof. |
|
N.C./N.O.
Output. |
|
6
feet cable wires. |
|
Mounting
bracket/screws included. |
|
Sensing
range adjustable. |
|
|
|
Specifications
|
Detection Model |
Retro-Reflection
|
|
Item
No.
|
N.C. |
IR-3000L
|
| N.O. |
IR-3000D
|
|
Sensing Range |
30 meters
|
|
Input Voltage |
DC 12-240V ¡Ó10% or AC 24-240V ¡Ó10%
|
| Response
Time |
15ms
|
|
Emitting Element |
IR
LED
|
| Operation
Indicator |
Yellow
LED (turn on when beam is broken)
|
| Dimensions |
21mm(w)
¡Ñ 55mm(h) ¡Ñ 50mm(d)
|
|
Current Consumption |
2VA Max.
|
|
Output Method
|
Relay
output
|
| Contact
Current |
3A
/ 250VAC
|
| Illumination |
Lamplight<10,000
Lux ; Sunlignt<30,000 Lux
|
| Connection
Method |
Cable
lead wires:Brown/Blue/White/Black/Gray
|
| Noise
Resistance |
1500Vp-P
/ 1uS
|
| Surge
Resistance |
2KV
/ 1uS
|
| Vibration
Resistance |
10-55Hz
/ 1.5mm , 2 Hours In X.Y.Z. Phase
|
| Housing
Material |
Case:
Intensive ABS ; Lens:PC
|
| Operating
Temp. |
-20¢J~60¢J
|
| Safety
Standard |
CE
|
|
|
|
